| Cleaning Process |
 |
| New Front U-Bolts 9/16" - old 7/16" |
 |
| Be sure this dimple is toward the front of the A-arm. I got lucky & installed them correctly before realizing it! |
 |

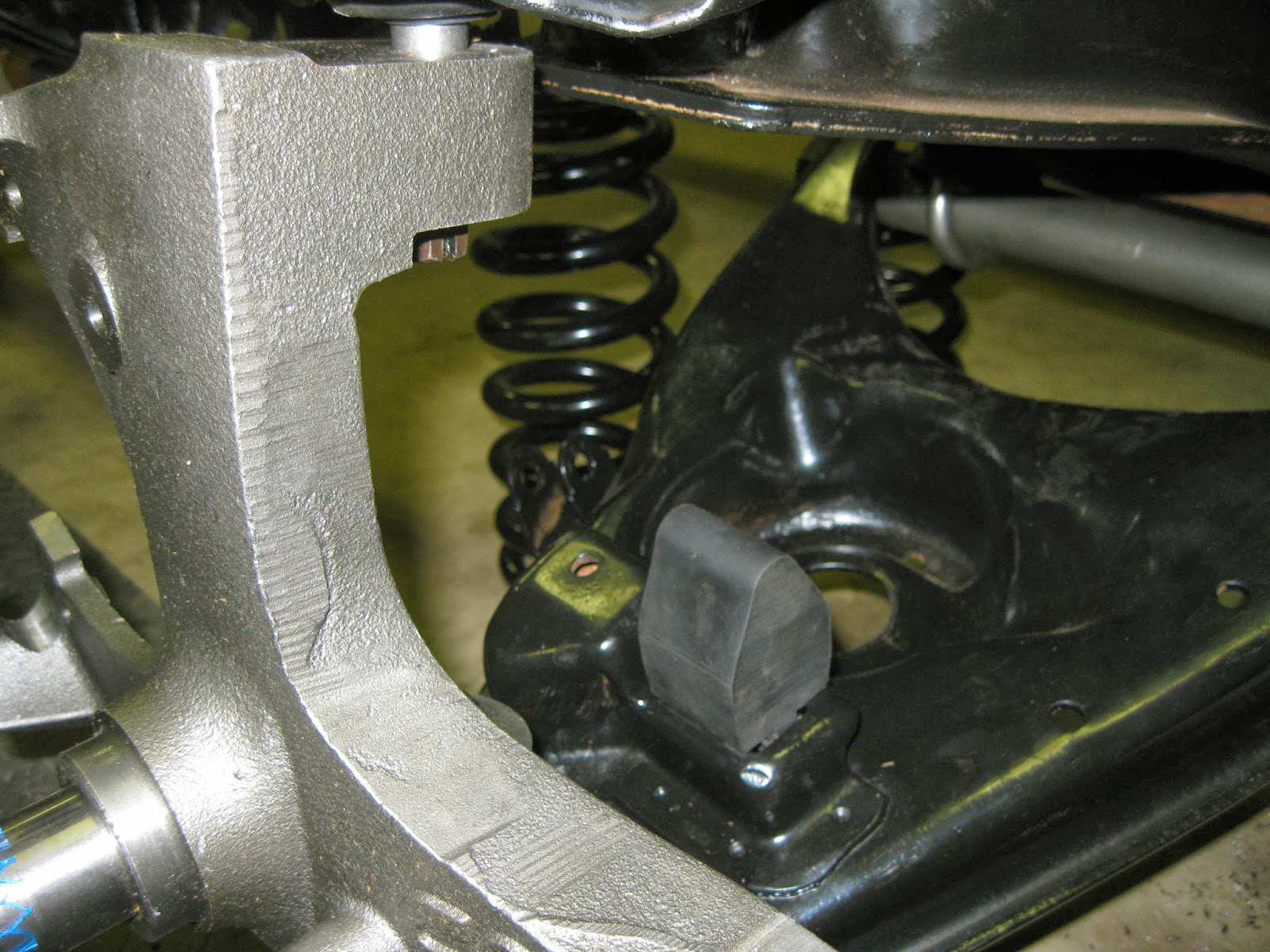

| Low A-arm installed |
 |

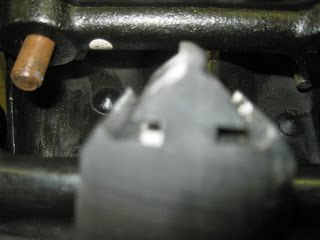

| Holes needed to be enlarged for the new bolts. It's tight to the frame but they fit fine. |
 |
| Goodies |
 |
| Goodies |
 |
| Goodies |
 |
| Goodies |
 |
| Goodies |
 |

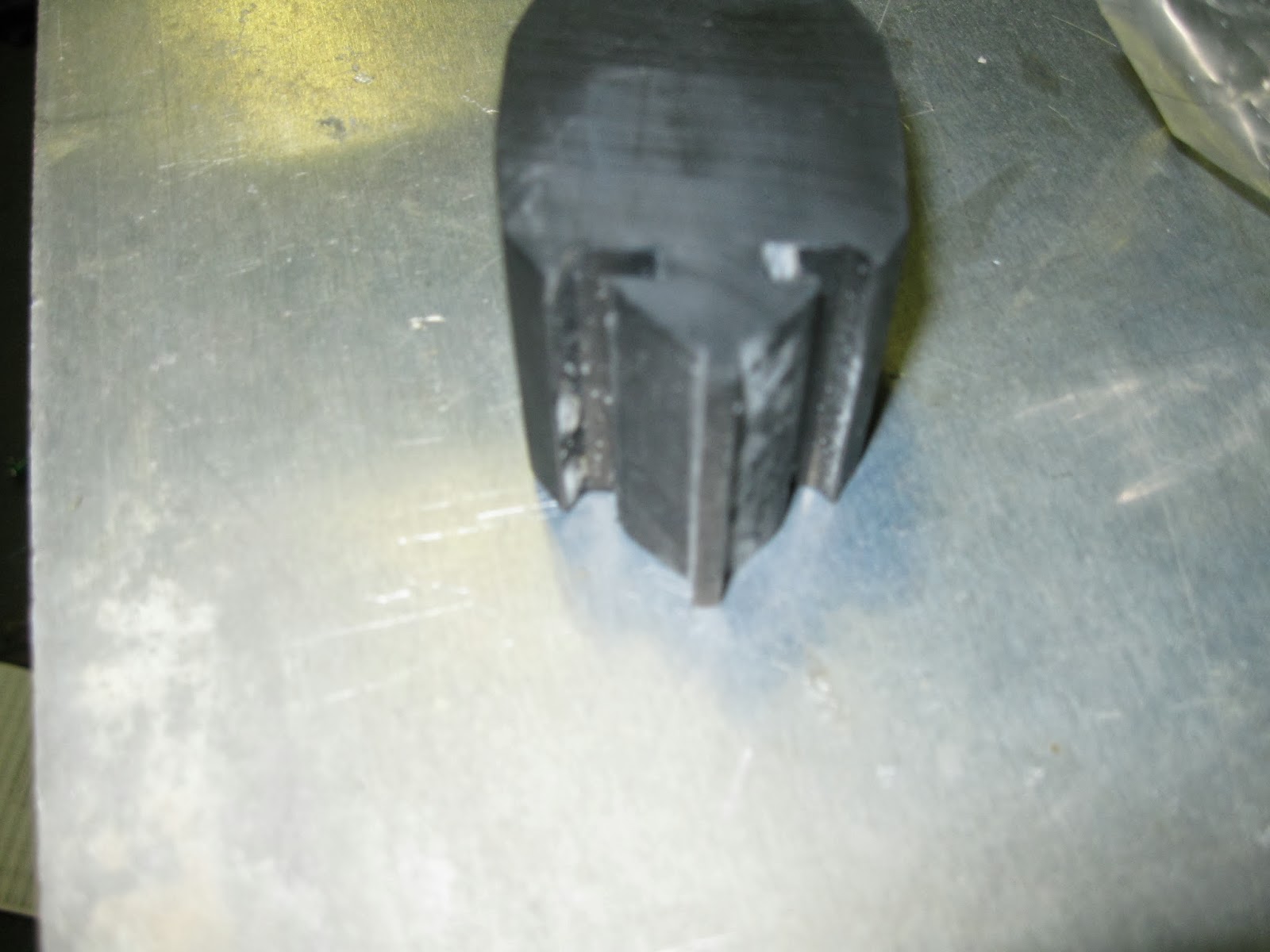

| Trimmed the side edges to easier installation. |
 |

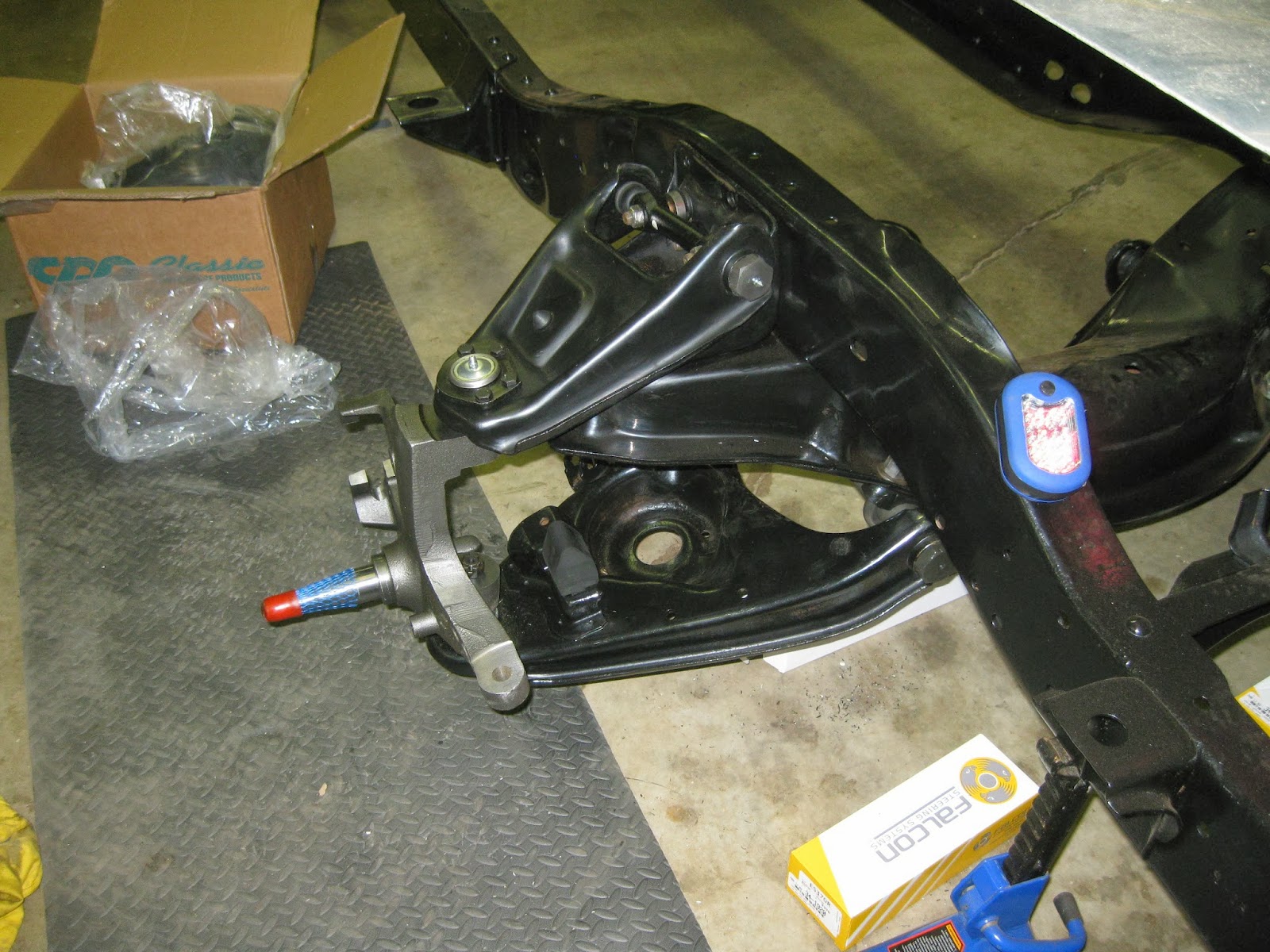

| PS - almost completed. |
 |
| DS with tie rods installed. |
 |
| Brake line temp hung. |
 |
| I was happy to see the PO had refurbished the rear brakes. |
 |
| E-Brake cables were cut by PO. |
 |
| New wheel cylinder but old pitted push rods...? |
 |

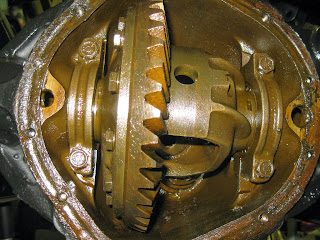

| Pretty clean inside. Very little particles and no sign of metal. |
 |
| 5 lugs wheel I plan to use to make it a roller. |
 |

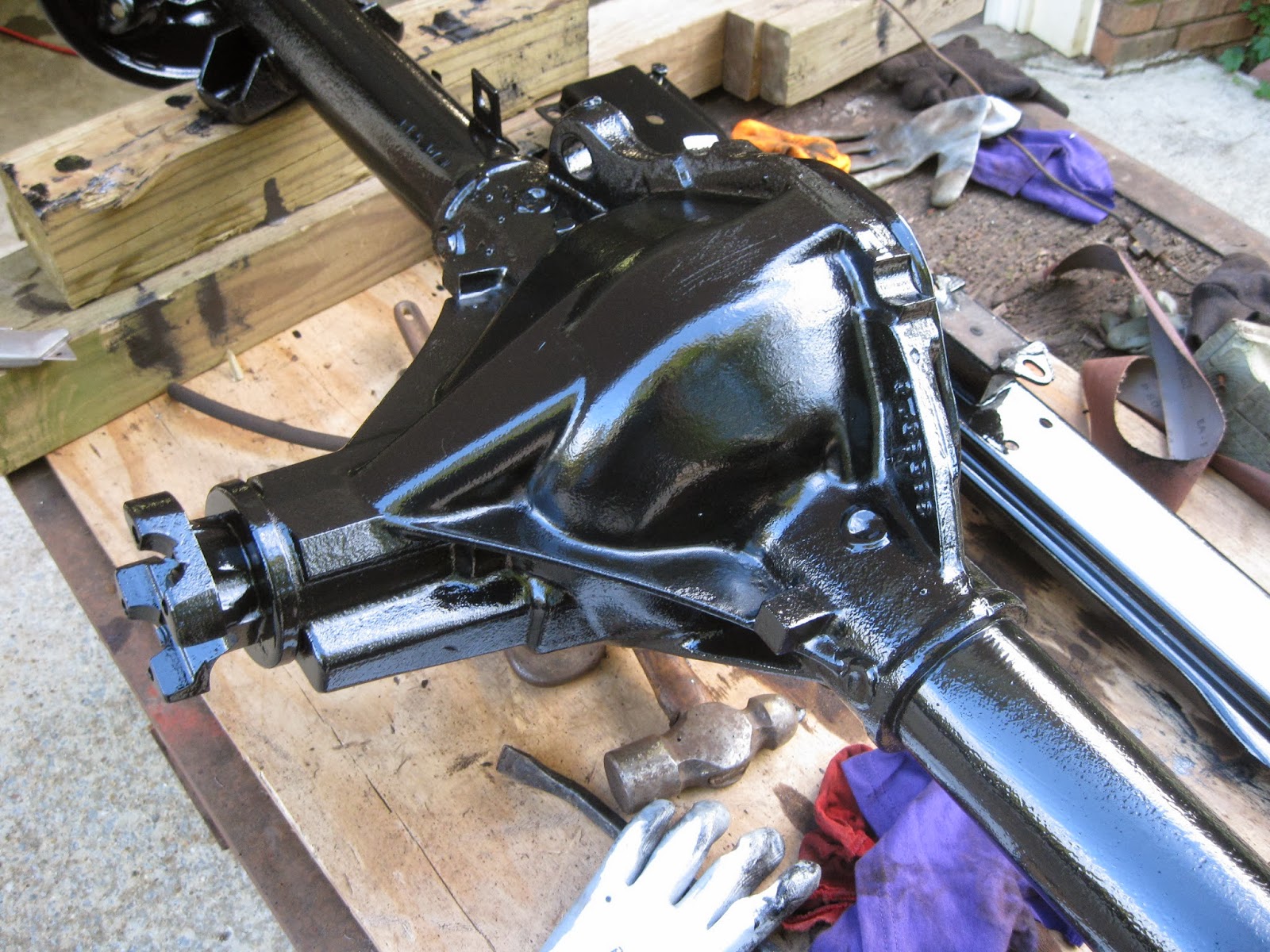

| 12 Bolt cleaned and painted. |
 |
| 41/11 = 3.73 Gear |
 |
| Nice fit on the new drums |
 |
| Still need to install the brakes. I need new E-Brake cables due to the old being cut. |
 |
| Using the adapter as a template for drillling the frame. |
 |
| REZ PS adapter. This will be painted black! |
 |
| PS Gear Box from Oreillys |
 |
| PS Gear Box from Oreillys |
 |
| Test mounting |
 |
| Bottom stud that is welded to the plate |
 |
| Pitman Arm for 75 model C10 as well as the PS Gear Box and PS Pump |
 |
| Painted |
 |
| This is where I am on the chassis 10-23-13 |
 |
| This is where I am on the chassis 10-23-13 |
 |
| 1988 700R4 30 Spline |
 |

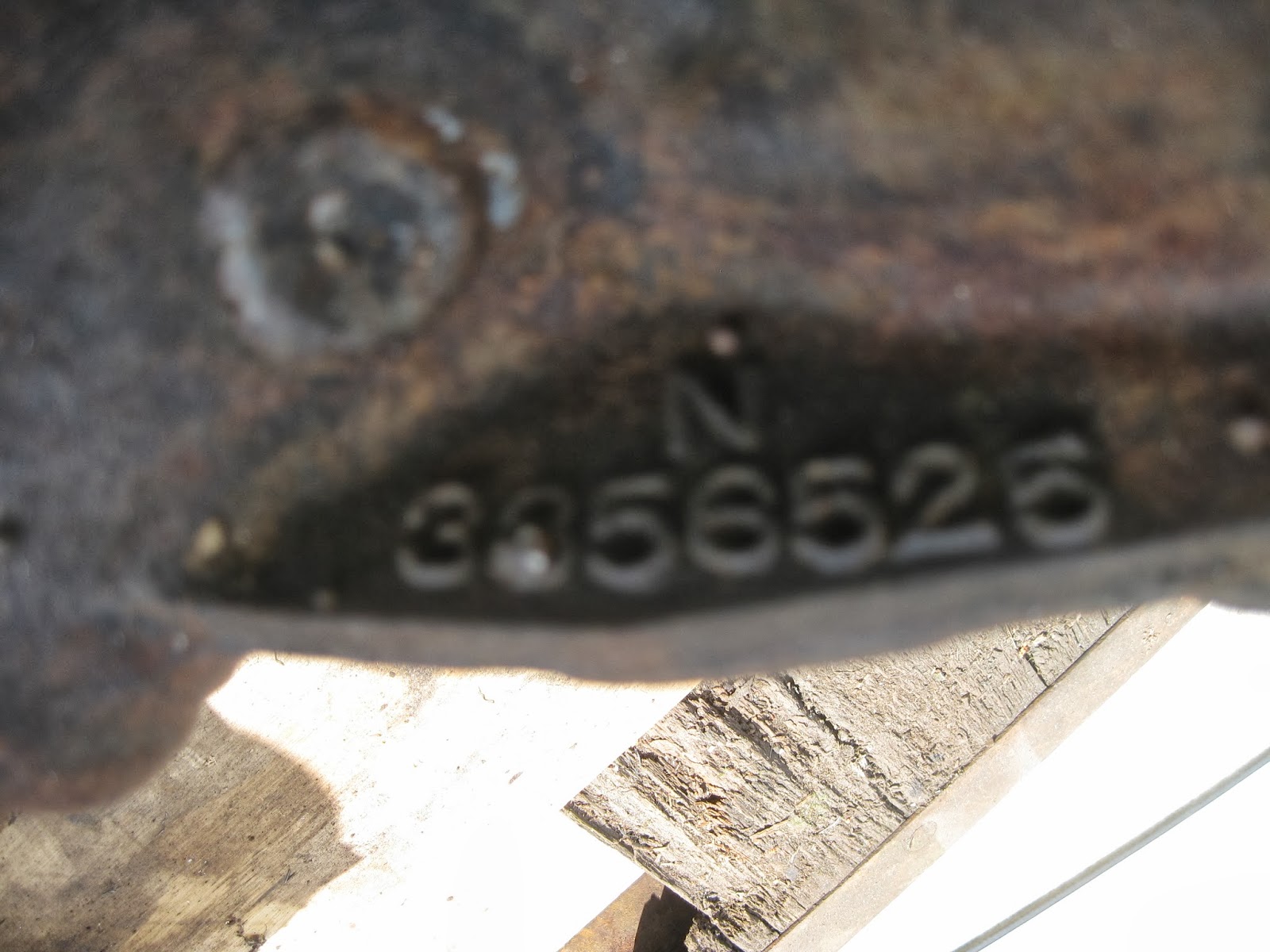

| 1975 350 CODE K07 09 TKG |
 |
This is where I am on the chassis 10-23-13 |
 |
| Tank Mock up |
 |
| Nice Clearance |
 |
| 11-3-13 |
 |
| 11-3-13 - current valve covers are temporary |
